Sheye Metal supplies cold-rolled 304L stainless steel sheet in 2B, No.4 and other specified finishes. Choose export sheet sizes, custom cutting and protective film to suit your production. Our TISCO distribution channel supports both standard gauges and thicker cold-rolled material.
DIMENSIONS & DELIVERY
304L Sheet supply range
Choose the production route that matches your order. The quotation confirms the grade, thickness, width, surface and delivery combination.
2000 / 2438 / 3000 / 3048 / 4000 / 6000 mm; other cut lengths to order
Mill surface
2B / 2D / BA / 2R / BA0 / BA1 / BA2
Sheye surface processing
No.4 / HL / No.3 / SB / 6K / 8K; special finishes by agreement
Specification routes
GB/T 3280 · ASTM / ASME (specification to be agreed) · JIS G4305 · EN 10088 / EN 10028 (applicable part to be agreed) · Q/TB 3084 · IS 6911:2017
State the exact standard number, applicable part, edition and grade in your enquiry. The quotation and mill test certificate identify the agreed specification; a reference list does not certify every combination.
For cold-rolled widths above 1524 mm, discuss the TISCO mill route, grade and available thickness with Sheye.
BA0, BA1 and BA2 are mill finish descriptions. Confirm the mill code and an agreed surface sample; they are not universal equivalents.
Mill surface codes and decorative finish names are confirmed against the agreed description or sample. Additional processing depends on the grade, thickness and required finish.
PRODUCT DETAILS
Specify 304L Stainless Steel Sheet for your process
Stock and processing built around your order
Sheye Metal is a first-tier TISCO distributor with around 10,000 tonnes of stainless steel inventory across our product range. Our mother-coil stock supports different sheet widths and cut lengths, giving buyers more choice than a fixed list of finished sheets.
For a fabricator, that means ordering a size that fits the cutting layout. For a distributor, it means reviewing several thicknesses, finishes and pack sizes in one enquiry. Share your material schedule so we can confirm stock, processing and delivery for each item.
Export sheet sizes and custom cutting
We stock mother coils for commonly requested export formats and process them into sheets to order.
Sheet size, width × length
Supply option
1000 × 2000 mm
Export format supported by mother-coil stock
1250 × 2500 mm
Export format supported by mother-coil stock
1524 × 3048 mm
Export format supported by mother-coil stock
1219 × 2438 mm
Commonly supplied format
1500 × 3000 mm
Commonly supplied format
Custom dimensions
Send your cutting list, tolerances and quantity
These are finished sheet sizes. We select the mother-coil width and cut length for the order. If your drawing uses inches or gauge, include those units; we will agree the thickness and dimensional tolerances before processing.

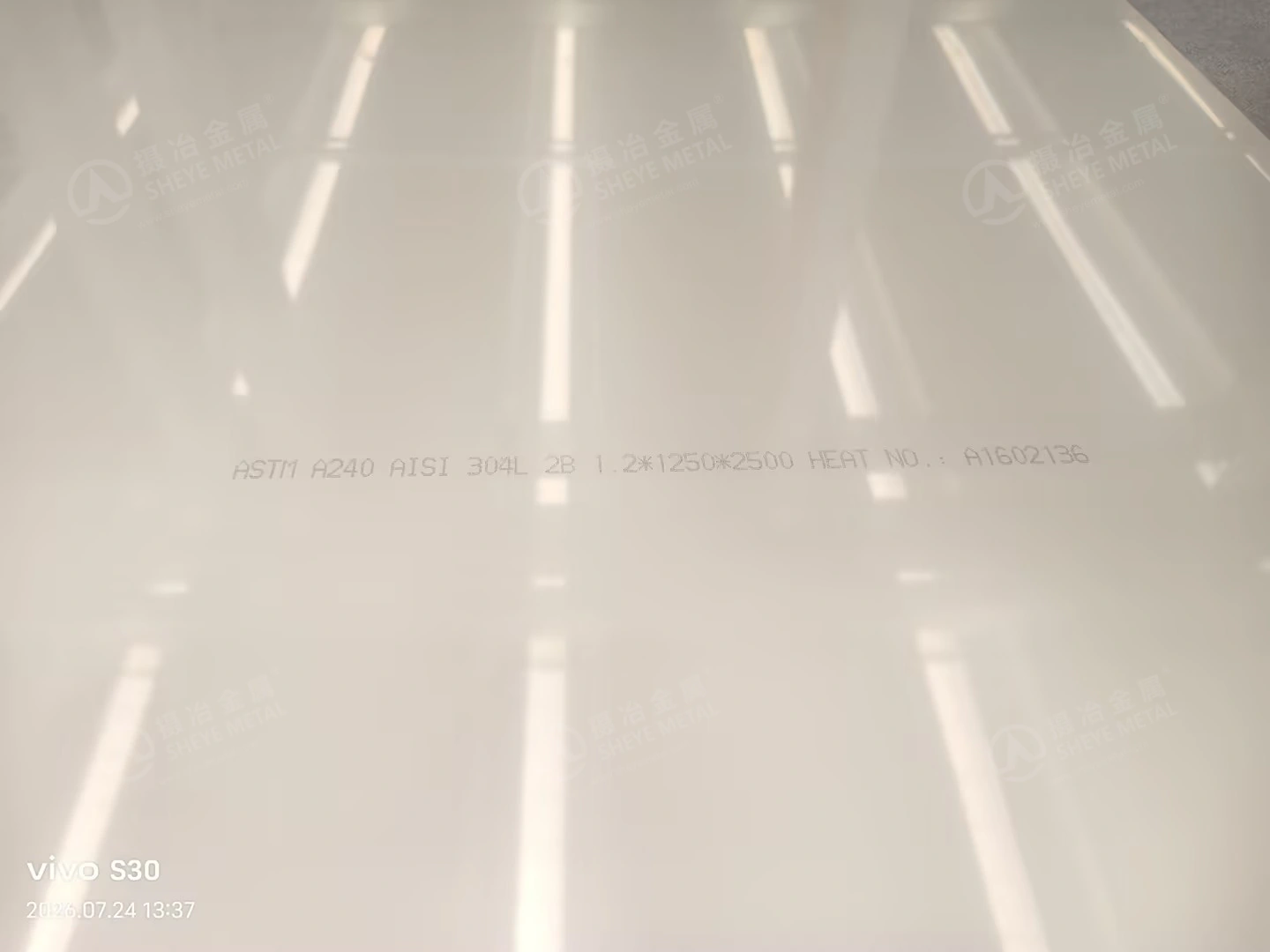

304L 2B sheet in 1250 × 2500 mm export size, with grade, dimensions and heat number marked.
Cold-rolled options from 0.3 to 8.0 mm
Alongside the regular 0.3–3.0 mm range, Sheye offers thicker cold-rolled material from 3.0–8.0 mm, including 6–8 mm options through our TISCO supply channel. This gives buyers a route to thicker material when a cold-rolled surface is required.
Confirm the thickness, width and finish together. Decorative polishing is reviewed separately from the mill-finish supply range.

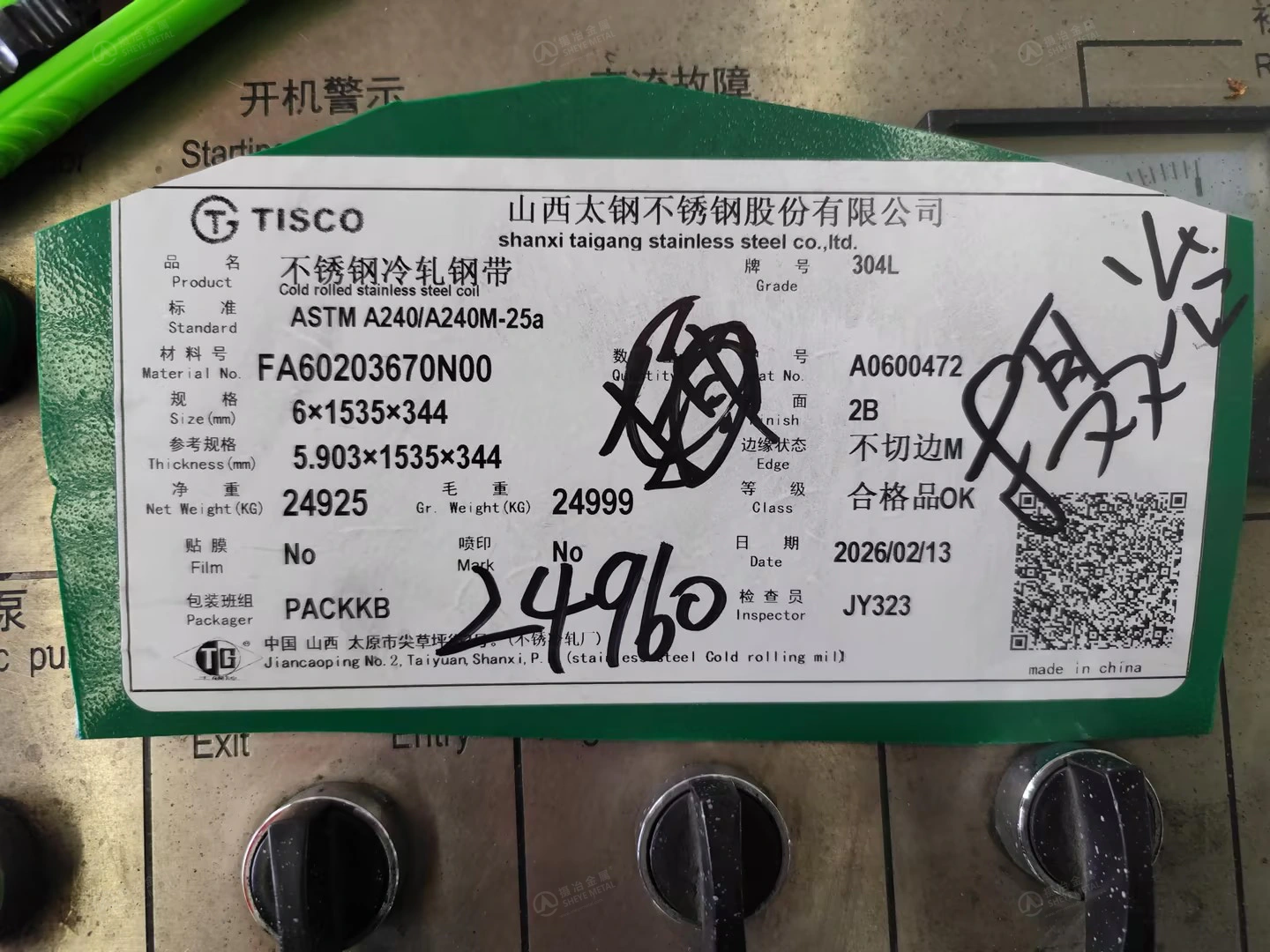

TISCO source-coil label: 304L, 2B finish and nominal 6 mm thickness.
Choose the surface for your next process
304L 2B Stainless Steel Sheet
2B is a smooth, lightly reflective mill finish. It is a practical starting point for formed parts, welded equipment and sheets that will receive further finishing. We can supply it with the agreed protective film or without film.
304L NO.4 Stainless Steel Sheet
Also described as 304L #4 Stainless Steel Sheet, this finish has a directional polished grain. It is often chosen for visible panels and fabricated equipment. Agree the appearance sample, grain direction and whether one or both sides need polishing.
HL and other finishes
HL, or hairline, has a long directional grain. It is a separate appearance choice from No.4. Tell us which face will be visible and how adjoining panels should match.
Match the protective film to the job
Finish and film
What to specify
No.4 + 70 µm black-and-white film
Finished side, film thickness and downstream handling
No.4 + Novacel 4228 laser protective film
Exact film reference and your laser-cutting process
HL + laser protective film (LPE)
Hairline direction, film reference and cutting method
2B + 70 µm black-and-white film
Covered side and subsequent cutting or forming
Film thickness is separate from steel thickness. A general protective film should not be assumed suitable for laser cutting. Tell us your cutting method so the film can be selected with the order.

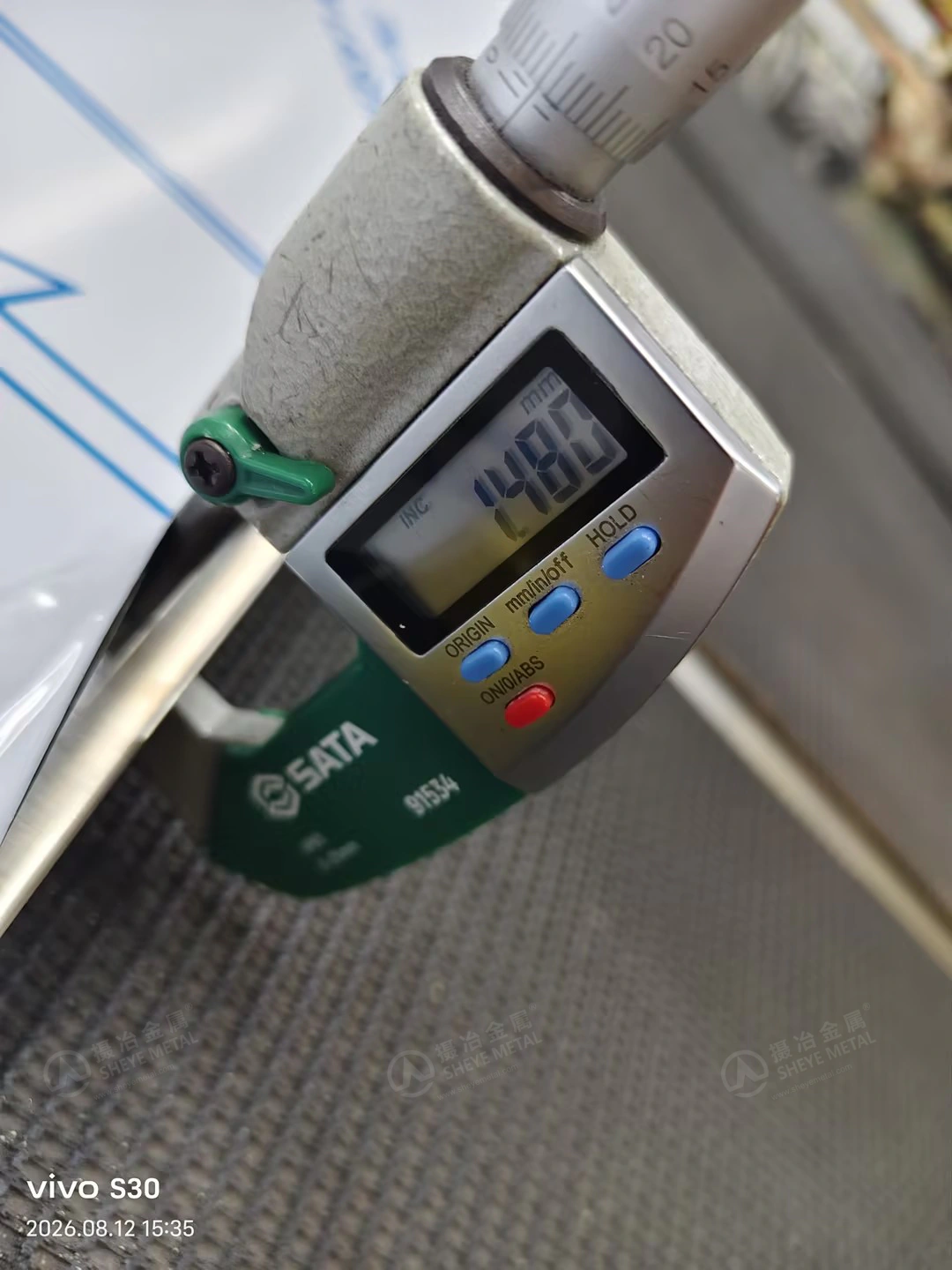

A thickness check on No.4 sheet with Novacel 4228 laser protective film.
Real measurements, linked to the material
Our workshop photos show how we check sheets during preparation: identify the grade and heat marking, measure thickness at different positions, and check width and length. Surface appearance and film requirements are considered alongside dimensions.
The examples below show thickness checks on nominal 0.4 mm and 2.0 mm 304L 2B sheets. The readings are examples from these sheets; the order specification defines the acceptance limits.

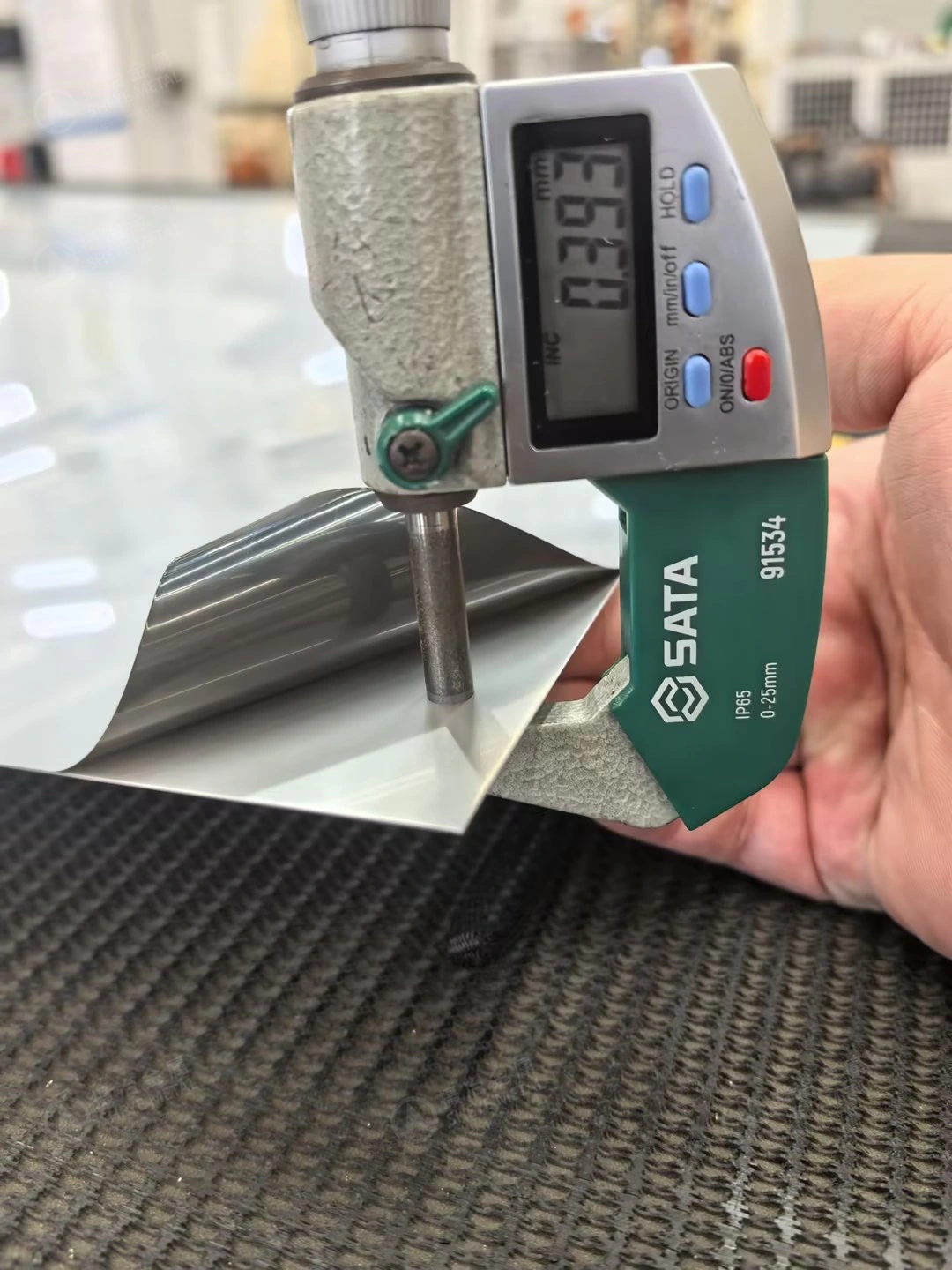

Edge thickness check on nominal 0.4 mm 304L 2B sheet, with the film lifted at the measuring point.

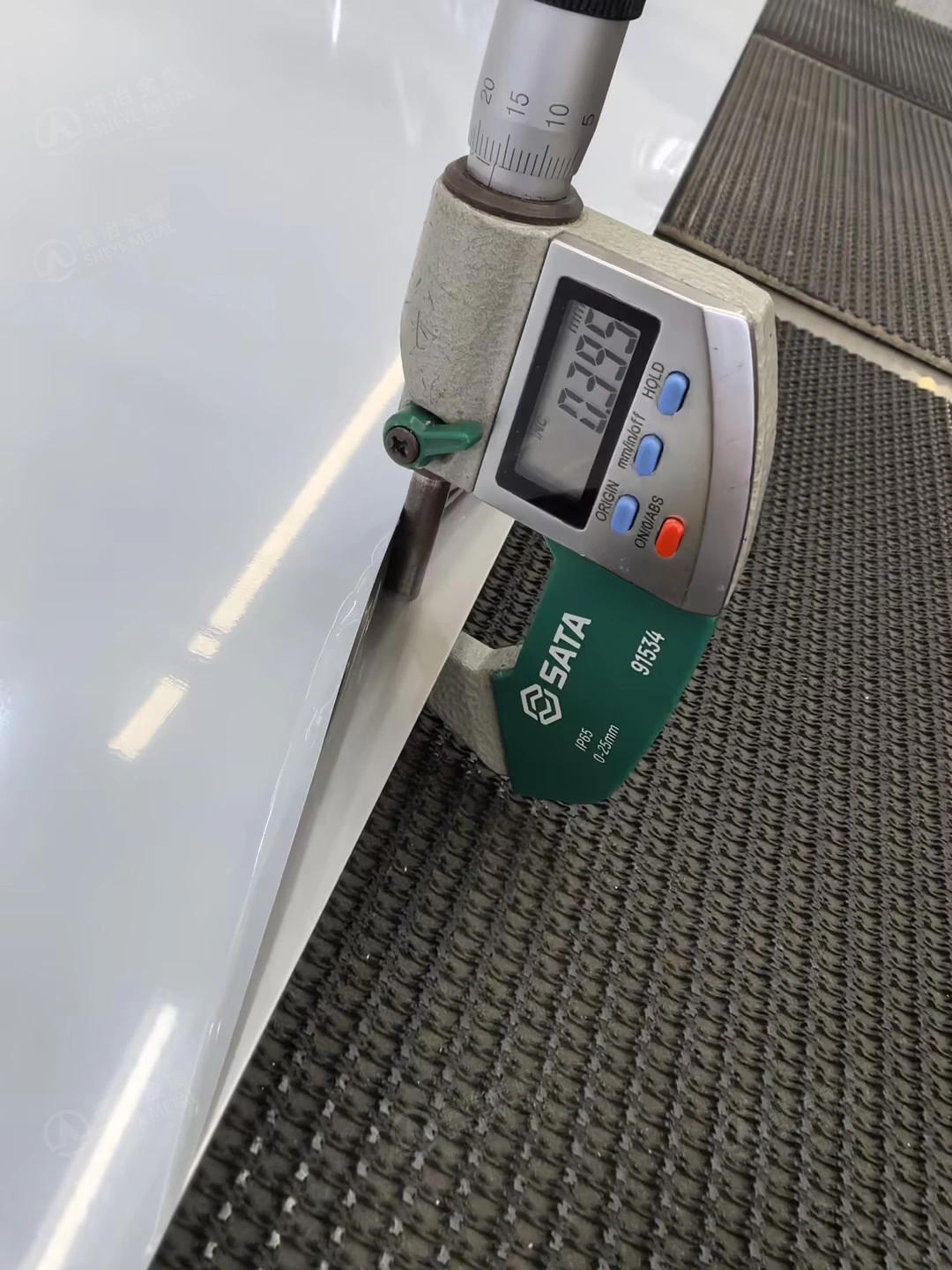

An additional thickness check on the nominal 0.4 mm sheet.

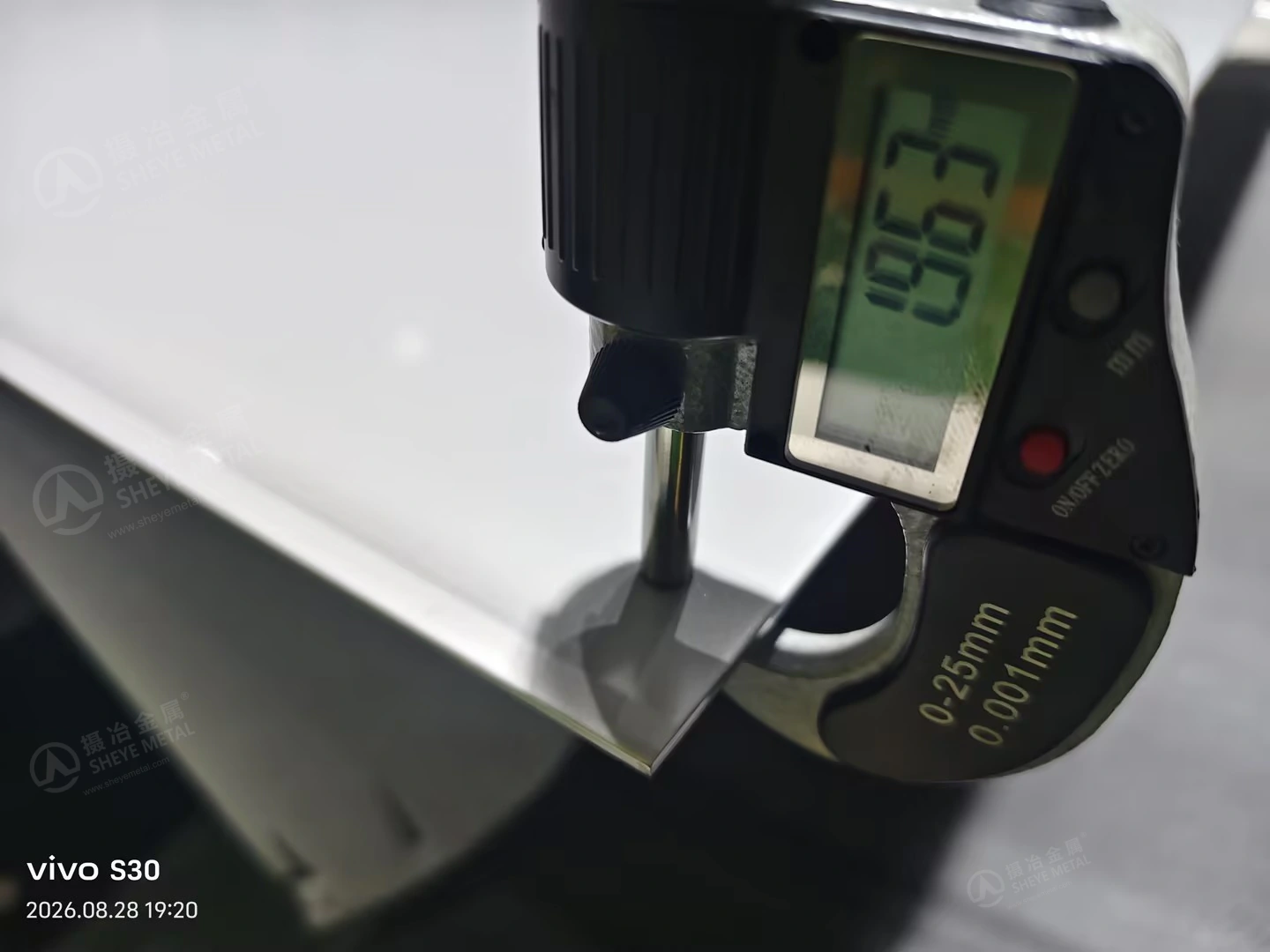

Edge thickness inspection on the nominal 2 mm 304L 2B sheet.

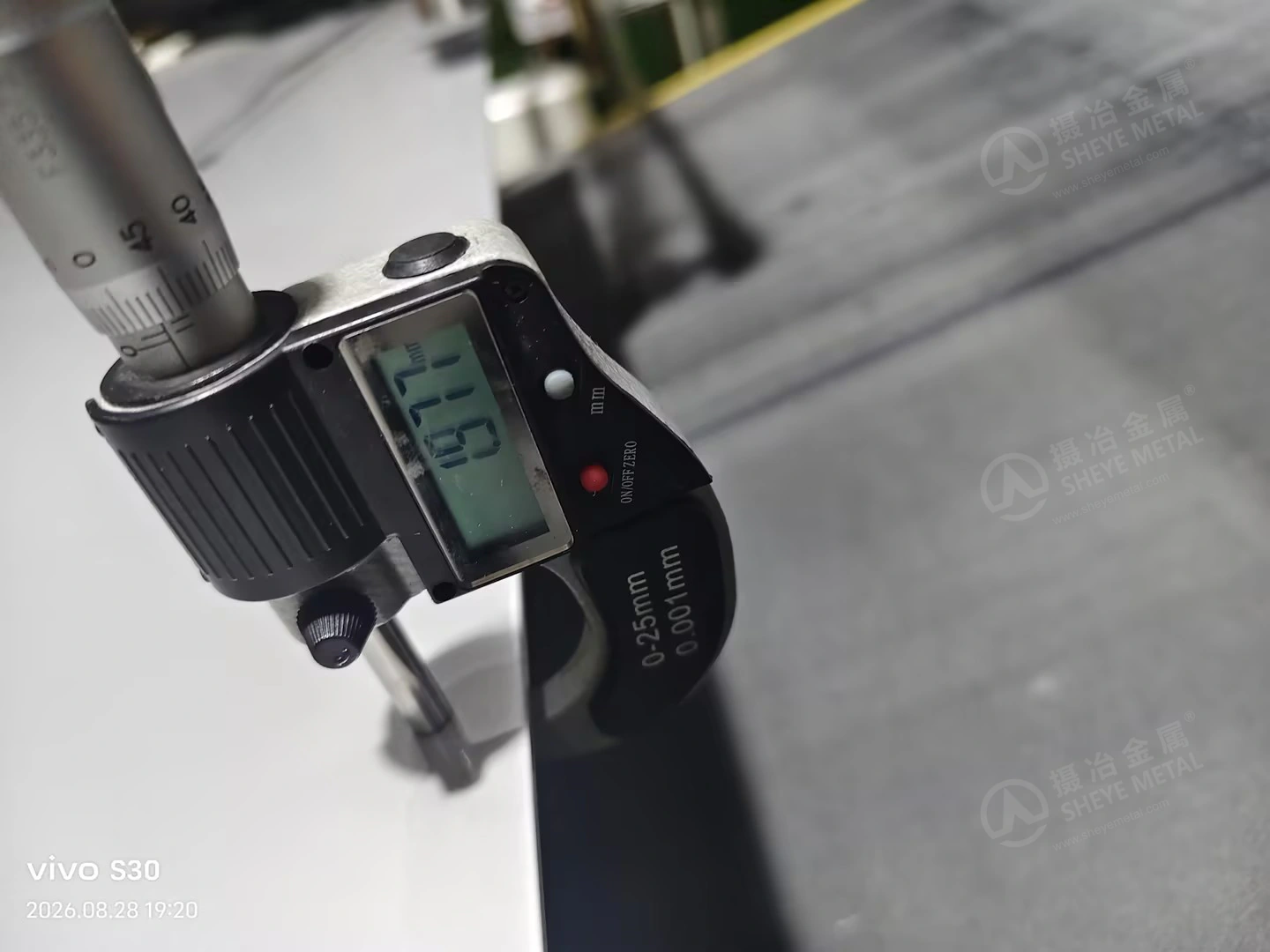

Another thickness check on the nominal 2 mm 304L 2B sheet.
For ASTM orders, specify 304L / UNS S30403 to ASTM A240/A240M and the required edition. Agree dimensions and tolerances using the applicable ASTM A480/A480M requirements and any additional purchase requirements. Request the mill test certificate and the material identification needed for your receiving checks.
Origin options and bonded processing
Sheye can arrange bonded processing for stainless steel originating in Indonesia, Vietnam and other countries, alongside Chinese-origin supply. This allows buyers to discuss material origin and processing requirements together.
State the required origin and delivery country in your enquiry. The quotation should identify the selected supply route and required origin documents.
Before you order
Why choose 304L for welded parts?
304L is the low-carbon version of 304. Its lower carbon content helps reduce the risk of intergranular corrosion after welding. The grade remains a choice for the actual service conditions; it is not a general upgrade for saltwater exposure. See our 304L material guide for grade and fabrication details.
What does 16GA mean when ordering sheet?

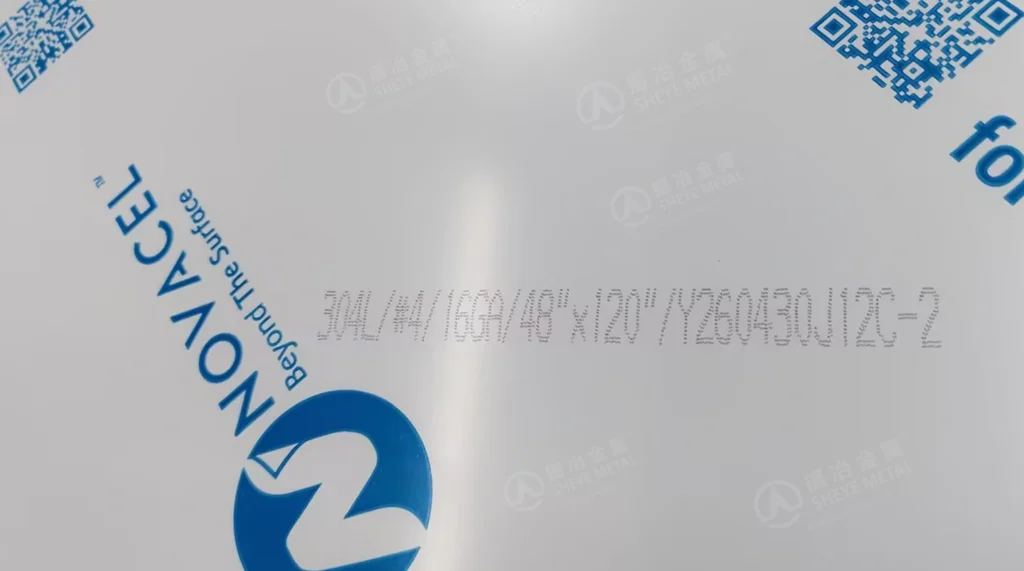

For gauge orders, we agree the gauge system, nominal thickness and tolerance before processing. The Canada-order example is marked 16GA and 48 × 120 inches. Keep the original units on your enquiry or drawing.
Can you supply a different size or finish combination?
Yes—send the requested combination for review. Mother-coil stock, cutting and surface processing provide flexibility, while availability depends on the specific thickness, width, finish and quantity.
Request a quote for 304L sheet
Send your thickness × width × length, finish and quantity, plus:
Material standard, edition and required certificate.
Dimensional tolerances, flatness and edge requirements.
Film reference, covered side and polishing direction.
Required origin, destination, packing and delivery date.
